Cookie Cartoning Case Study: How Glue-Seal Automation Trimmed an 8-Worker Packaging Line Down to 2

The Challenge: Manual Glue-Sealing at Production Scale

A mid-sized cookie and biscuit producer based in Southeast Asia supplies individually wrapped cookie packets to retail chains and wholesale distributors. Each wrapped packet requires secondary packaging — loading into a glue-sealed carton — before it reaches store shelves. The glue-seal format relies on hot-melt adhesive to create a tamper-evident seal: once the carton is closed, any attempt to reopen it leaves visible damage on the packaging surface. This is why food brands favor glue-sealed cartons over tuck-end boxes, which can be opened and re-closed without leaving a trace.

For this manufacturer, the glue-seal requirement was not optional. Their retail buyers had written tamper-evident packaging into their purchasing agreements. But the same requirement turned manual packaging into a slow, labor-intensive, and quality-prone operation.

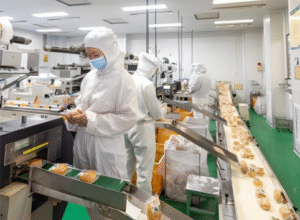

The Manual Packaging Line: Eight Workers, One Bottleneck

• Two workers opened flat carton blanks and folded the bottom flaps into position.
• Three workers placed wrapped cookie packets into each formed box, arranging them to reach the correct count per carton without crushing the product inside.
• Two workers managed the glue-sealing station — applying hot-melt adhesive to the end flaps, pressing them shut, and holding each carton until the bond set.
• One worker moved sealed cartons onto the conveyor heading to the downstream packing stage.

The manual glue-sealing station was where quality problems originated. Too little adhesive meant flaps popped open during transport. Too much adhesive left a sloppy, unprofessional look on the finished carton. Insufficient hold time produced weak bonds that failed downstream. Every shift generated cartons that needed rework — peeling open the flap, scraping off dried glue, reapplying adhesive, and resealing. This rework loop ate into productive hours and introduced a secondary quality risk.

This was not a workforce training issue. It was a mechanical limitation. Human hands cannot replicate the same adhesive bead geometry, pressure, and setting time on every single cycle. A glue-seal cartoning machine can.

The Turning Point: An Online Video That Sparked Action

The factory owner had been searching for automation options for the secondary packaging station for several months. The requirements were specific: the equipment had to handle glue-sealed cartons, accommodate existing box dimensions without modification, automate the entire open-load-seal sequence, and deliver consistent tamper-evident seals at production speed.

While browsing social media, the owner came across a video showing a glue-seal cartoning machine in operation. The footage showed the full cycle: carton blanks being picked and formed, product being loaded into the formed boxes, hot-melt adhesive being applied to the end flaps, and each carton being sealed — all in one continuous mechanical motion. The video displayed exactly the process the manual line was performing, minus the glue inconsistency, the rework, and the eight-worker labor burden.

The Sample Trial: Compatibility Testing Without Sharing Product Details

The cookie manufacturer had confidentiality concerns. Sending actual product samples to an equipment supplier meant exposing package formats, product dimensions, and production details to a third party. The supplier proposed an alternative approach: the customer provided the carton blank dimensions, product dimensions, and required count per box. The supplier then sourced comparable box blanks from its own inventory, configured the glue-seal cartoning machine with matching infeed and closing parameters, and ran a test cycle.

The trial was recorded on video and sent to the customer. The footage showed the machine opening each blank, forming the box, advancing simulated product through the infeed, applying the adhesive bead, and sealing the carton — all at production speed. The customer could evaluate carton closing quality, adhesive application pattern, and cycle time without disclosing any proprietary product information. Within three days of reviewing the video, the customer confirmed the order.

After Automation: One Machine, Two Workers, No Manual Gluing

The New Line Configuration

One month after the initial contact, the glue-seal cartoning machine was installed and commissioned at the cookie factory. The secondary packaging station transitioned from an eight-worker manual line to a two-worker machine-assisted workflow:

• One worker at the infeed, placing wrapped cookie packets onto the machine’s product infeed conveyor.
• One worker at the output end, moving sealed cartons from the machine discharge onto the conveyor feeding the downstream case-packing and palletizing stage.

The tasks that previously required six workers — manual folding of flat blanks, manual product loading, manual adhesive application, and manual flap closing — were now handled by the glue-seal cartoning machine in a continuous mechanical cycle. The machine opens each blank, forms the box, loads the correct count of cookie packets, applies the hot-melt adhesive bead at the programmed temperature and pattern, presses the flaps closed, holds them for the correct setting time, and discharges the sealed carton — all without operator intervention.

Consistent Output, No More Rework

The machine delivered consistent output from the initial production shift. The manual line had produced variable throughput throughout the day — faster in the early hours, slower as fatigue set in, and periodically interrupted by rework cycles when downstream inspection flagged glue-related issues. The glue-seal cartoning machine produced the same output at 9:00 AM as it did at 4:30 PM.

The carton defect rate from adhesive issues dropped to near zero. The rework station that had been a fixture of the manual line was removed entirely — there was nothing to rework.

How a Glue-Seal Cartoning Machine Operates

A glue-seal cartoning machine performs the complete secondary packaging sequence in one continuous mechanical cycle:

1. 1
   Blank pickup — A flat carton blank is picked from the magazine by vacuum cups and transferred to the forming station.
2. 2
   Box forming — Mechanical folders erect the blank into a three-dimensional box.
3. 3
   Product loading — The formed box moves to the loading station, where a servo-driven pusher mechanism pushes the product into the open box.
4. 4
   Adhesive application — The filled box advances to the sealing station, where a hot-melt adhesive applicator applies a precisely controlled bead of glue to the end flaps.
5. 5
   Flap closing and setting — The flaps are pressed closed and held for the programmed setting time.
6. 6
   Discharge — The sealed carton is discharged to the outfeed conveyor.

The hot-melt adhesive system is the component that sets a glue-seal cartoning machine apart from a tuck-end machine. These machines use international-brand hot-melt applicators that maintain consistent adhesive temperature and bead geometry throughout the full production shift. The adhesive temperature, bead pattern, and setting time are programmed through the machine’s HMI (human-machine interface) and can be adjusted for different carton sizes and adhesive formulations without mechanical modification.

Why Manual Glue Application Breaks Down at Production Volume

Manual glue application in food packaging looks straightforward until it must be performed correctly at production volumes. The worker uses a glue gun or brush to apply hot-melt adhesive to the carton flap, presses the flap closed, and holds it for the required setting time. At the volumes demanded by retail and e-commerce channels — thousands of cartons per shift — manual glue application becomes both the throughput bottleneck and the quality risk simultaneously.

The problems with manual glue application are inherent to the process:

• Adhesive temperature fluctuates as the glue pot cools between applications.
• Bead pattern varies with the worker’s hand motion and speed.
• Setting time varies with the worker’s fatigue level.

These variables produce cartons whose seal quality is inconsistent across a shift and across different workers. The downstream inspection station catches the obvious failures, but borderline cases pass through and fail during distribution.

A glue-seal cartoning machine eliminates all of these variables. The same applicator applies the same bead pattern at the same temperature and pressure on every cycle. The same mechanical closure presses each flap with the same force for the same duration. The result is a carton whose seal quality is identical from the initial box of the shift to the final one — regardless of how many hours the machine has been running or which operator is monitoring the infeed.

ROI: Six Positions Eliminated, Payback in Roughly Twelve Months

The direct labor saving is the clearest component of the ROI calculation: six workers removed from the secondary packaging station. The machine requires two workers instead of the previous eight. The two remaining workers are positioned at infeed and outfeed — roles that demand less training, less physical effort, and less specialized skill than the manual folding, gluing, and closing tasks they replaced.

At the regional labor cost level for the factory’s market, the annual saving from six packaging positions exceeded the machine’s purchase price within approximately twelve months. The payback was shorter than initial projections because the elimination of glue-related rework added savings that had not been fully counted in the pre-purchase estimate.

Beyond direct labor, three indirect costs were eliminated:

1. Product rework from failed glue bonds — which had required a dedicated rework station — dropped to zero.
2. Carton waste from glue-damaged blanks decreased because the machine applied adhesive in a controlled pattern with no overspray or excess.
3. Worker-related cost variables — absenteeism, training new workers on glue application technique, and quality variation between workers on different shifts — were substantially removed from the packaging station.

Why Glue-Seal Cartoning Matters for Food Manufacturers

The glue-sealed carton format is the preferred choice for food manufacturers selling through retail chains and e-commerce platforms for three reasons that go beyond packaging appearance:

Tamper Evidence

A glue-sealed carton cannot be opened and re-closed without visible damage because the adhesive bond tears the carton surface when pried apart. For food manufacturers shipping to retail and e-commerce customers, this tamper-evident property reduces disputes about product quantity and condition upon arrival.

Structural Integrity During Distribution

A glue-sealed carton maintains its closed state through the vibration, stacking pressure, and temperature fluctuations of long-distance transport. Tuck-end boxes can pop open under these conditions. Glue-sealed boxes remain closed throughout the distribution cycle.

Retail Buyer Compliance

Major retail chains increasingly specify glue-sealed or tamper-evident carton formats in their packaging requirements for food products. Manufacturers who cannot meet this specification risk losing shelf placement.

Glue-seal cartoning machines support speeds of 1,500 to 2,400 cartons per hour using international-brand hot-melt applicators, meeting the throughput requirements of retail-bound food production.

What Makes This Deployment Repeatable Across Food Categories

The cookie manufacturer’s success with this glue-seal cartoning machine follows an operational pattern that applies broadly across food categories. The product was already sealed in primary packaging before entering the cartoning station. The cartoning machine performed secondary packaging — handling a sealed, uniform product unit rather than an exposed food surface. This means any food manufacturer with a product already packaged in a wrapper, pouch, or sealed tray before cartoning can deploy the same machine configuration with no food-safety validation barrier.

The box type — glue-sealed carton — is one of the standard formats that these machines handle natively, alongside tuck-end and snap-lock bottom cartons. A manufacturer evaluating cartoning automation can proceed with confidence if their existing box is a standard format. In the majority of cases, the existing box design does not need to change — the machine adapts to the box format, not the other way around.

Where the packaging line includes a carton folding machine upstream of the cartoning station, the two machines are synchronized to maintain consistent carton flow. Carton folding machines handle snap-lock bottom boxes at 40 to 60 boxes per minute and tuck-end boxes at 40 to 60 boxes per minute, feeding directly into the cartoning machine’s blank magazine without intermediate manual handling.

Frequently Asked Questions

How to Get Started

Sample trial runs are supported before purchase. Send your product dimensions, carton blank specifications, and output requirements to the team. The engineering team configures a test cycle on the relevant glue-seal cartoning machine and provides video documentation of the output — including carton closing quality, adhesive application consistency, cycle speed, and any format adjustments required. The trial is provided at no cost and does not require a purchase commitment.

Standard glue-seal cartoning machine configurations are available for next-business-day dispatch after contract signing. Custom configurations for non-standard carton dimensions or specific hot-melt adhesive requirements are typically available within three months of design confirmation. Installation and commissioning are included in the purchase price. On-site operator training takes approximately two hours.

Carton Integrity in the Food Supply Chain

Food products moving through retail and e-commerce supply chains face handling conditions that test carton integrity at every stage. Cartons are stacked on pallets, transported by truck across varying distances and climates, sorted in distribution centers by automated equipment, and placed on retail shelves by staff who may not handle them gently. A glue-sealed carton that was closed properly at the factory will remain closed through all of these handling stages. A carton whose glue bond is weak will fail — and the failure will be visible: a popped flap, a spilled product, a damaged retail display.

For the cookie manufacturer in this case study, the switch from manual glue application to automated glue-seal cartoning eliminated the variability that had been producing intermittent seal failures in the supply chain. The machine’s consistent adhesive application and mechanical flap closing produced cartons whose integrity was uniform across every production batch. The retail buyer who had raised a quality complaint about carton seal quality three months before the automation project began did not raise another complaint after the machine was installed. The improvement in supply chain performance was immediate and measurable.

Food Safety and Regulatory Compliance

Food manufacturers operating under SQF, BRC, or FSSC 22000 audit frameworks have specific requirements for equipment and materials used in food production areas. The hot-melt adhesive used in a glue-seal cartoning machine must be food-grade and must not transfer to the product or the carton interior during the sealing process. Glue-seal cartoning machines use international-brand hot-melt applicators that maintain consistent adhesive temperature and prevent adhesive contamination of the product area. The adhesive is applied only to the carton flap surface, which is outside the product containment zone of the sealed carton.

The machine’s stainless-steel frame and food-contact-adjacent surfaces meet the sanitary design requirements of food-grade production environments. The machine is designed for access during cleaning procedures, and the adhesive system includes drip trays and shields that prevent adhesive residue from accumulating on machine surfaces. For facilities with specific allergen segregation or cleaning protocol requirements, a detailed equipment specification is available that confirms compliance with the relevant food safety standards.

Changeover and SKU Flexibility

The cookie manufacturer produces multiple SKUs with different carton dimensions and product counts per box. Changeover between SKUs on the manual line required reconfiguring the glue application setup, adjusting the folding guides, and retraining workers on the new count requirements — typically 30 to 45 minutes per changeover.

On the glue-seal cartoning machine, changeover is completed in under ten minutes for dimension adjustments within the same box style. The operator adjusts the guide width using handwheels on the forming and closing modules, with target dimensions displayed on the HMI screen. The adhesive application parameters — bead pattern, temperature, and setting time — are recalled automatically when the corresponding SKU is selected.

This quick changeover capability is particularly valuable for a manufacturer producing 10 or more SKUs on a single line. A facility with three changeovers per week saves over 100 hours of lost production time annually by reducing changeover duration from 45 minutes to 10 minutes. For facilities that also produce tuck-end cartons for certain SKUs, the changeover between glue-seal and tuck-end formats requires planned module reconfiguration. Configuring the machine for the format covering the majority of production volume is the recommended approach.

The Timeline: From Discovery to Production in Under Five Weeks

The cookie manufacturer’s story is notable for how quickly the transition from discovery to production deployment happened:

• Week 1, Monday — The factory owner saw the glue-seal cartoning machine video on social media.
• Week 1, midweek — Contacted the supplier; product requirements discussion took place.
• Week 2 — The supplier configured a test run using comparable box blanks and sent video documentation.
• Week 2, end — The customer reviewed the video, confirmed compatibility, and placed the order.
• Weeks 3–4 — The machine was manufactured and shipped.
• Week 5, Friday — Installation and commissioning completed.
• Week 6, Monday — The machine was running production.

The total elapsed time from initial discovery to production-line deployment: less than five weeks. For the cookie manufacturer, this timeline meant that the labor savings and quality improvements began within the same quarter as the decision to automate — with no extended transition period or production disruption.

Evaluating Your Glue-Seal Cartoning Requirements

Three factors determine whether a glue-seal cartoning machine is the right fit for a food manufacturing facility:

1. Carton format — The machine is designed for glue-sealed cartons specifically. If your box uses a tuck-end or snap-lock bottom format, a different machine configuration is appropriate.
2. Product infeed format — The product must arrive at the cartoning station in sealed primary packaging — such as a wrapper, pouch, or tray. Products that are loose or bulk-fed require a different infeed configuration.
3. Output volume — The machine delivers favorable economics at volumes exceeding 500 cartons per shift, where the labor savings from removing manual workers offset the machine investment.

These three factors are reviewed during every pre-purchase evaluation. The standard process includes a product and carton specification review, a sample trial with video documentation, and a layout plan that confirms the machine fits the available floor space and integrates with existing upstream and downstream equipment. The evaluation is provided at no cost and does not require a purchase commitment.

Training and Ongoing Support

The glue-seal cartoning machine installation included a two-hour on-site operator training session covering HMI operation, infeed procedure, adhesive system maintenance, and troubleshooting for common issues. The cookie manufacturer’s operators were running the machine independently within two production shifts. Routine maintenance — adhesive system cleaning, belt tension inspection, and blank magazine adjustment — follows the standard schedule taught during the training session.

The machine is supported with a one-year warranty covering parts and service, plus four-hour remote response support for issues that cannot be resolved through on-site troubleshooting.

Summary

The cookie manufacturer case study demonstrates a pattern that is becoming more common in food packaging: a manufacturer whose box format requires glue-sealed cartons reaches a volume where manual glue application becomes economically unsustainable. The manual glue-sealing step requires multiple dedicated workers, produces a measurable rework rate, and generates quality variation that would be invisible if the cartons were tuck-end boxes. The glue-seal cartoning machine addresses all of these problems simultaneously — reducing the station from eight workers to two while eliminating the glue-related quality issues that defined the manual operation.

The deployment timeline — from discovery to production-line installation in under five weeks — reflects three conditions available to any food manufacturer evaluating glue-seal cartoning automation: the machine matches the existing box format, the product is in sealed primary packaging, and the sample trial provides compatibility evidence before purchase. These conditions make the decision to automate measurable and low-risk, and the ROI calculation provides the financial justification.

For food manufacturers currently applying hot-melt adhesive manually, the operational pattern is the same. The machine replaces all of those manual steps with one continuous mechanical cycle — reducing glue-related quality variation and eliminating the rework that manual application inevitably produces.
