Mailer Box folding machine
It is mainly suitable for cartons of B/E/F corrugated paper and packaging materials such as 300-450g whiteboard paper. Automaticcardboard, press down,fold the ears,fold the sheets,form.Widely used in digital products, cosmetics,knitwear, baked goods, toys，fruits, daily necessities, medicine and other different industries in the high-end carton packaging.A glue sprayer can be added.
|
Model
|
HL-Z15(standard)
|
HL-Z15B(big)
|
|
Conveyor speed
|
720-900 Pcs/H
|
600-720Pcs/H
|
|
Carton size（mm）
|
L150-300*W100-200*H30-70 mm
|
L550-700*W250-350*H50-90 mm
|
|
Power supply
|
220V、 60Hz、2Kw
|
220V、60Hz、2Kw
|
|
Air pressure
|
600NL/min、0.6-0.8Mpa
|
600NL/min、0.6-0.8Mpa
|
|
Machine dimension
|
L1900×W1300×H1800mm
|
L2450×W1660×H2000mm
|
|
Machine weight
|
580kg
|
800kg
|
Boxing flowchart

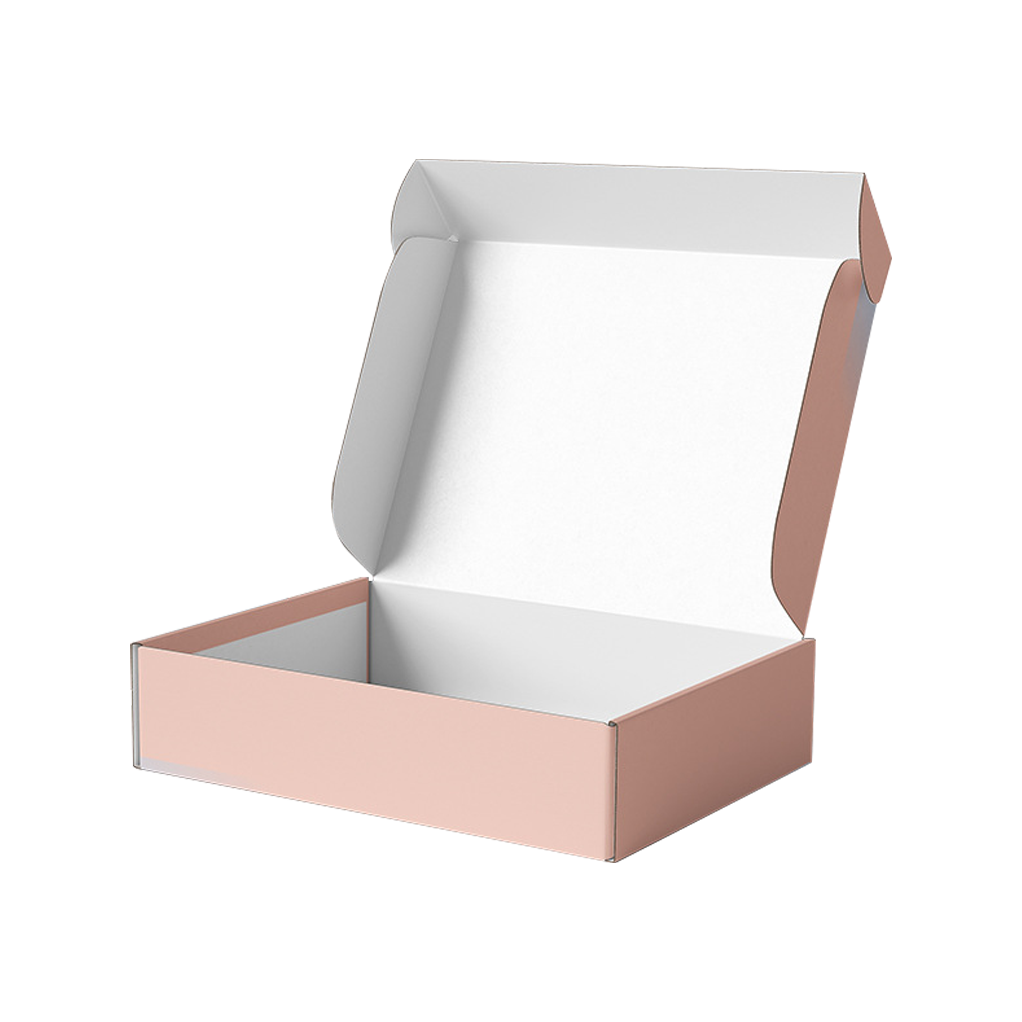

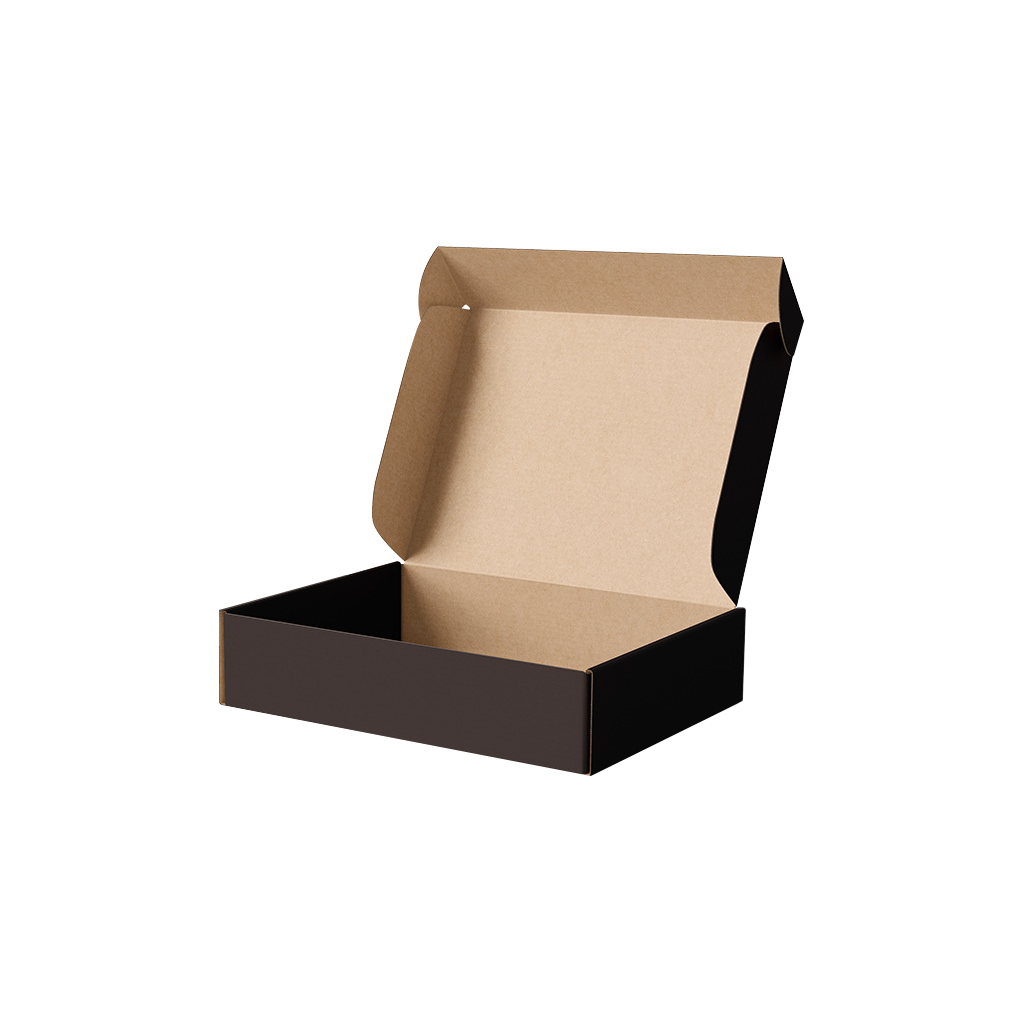

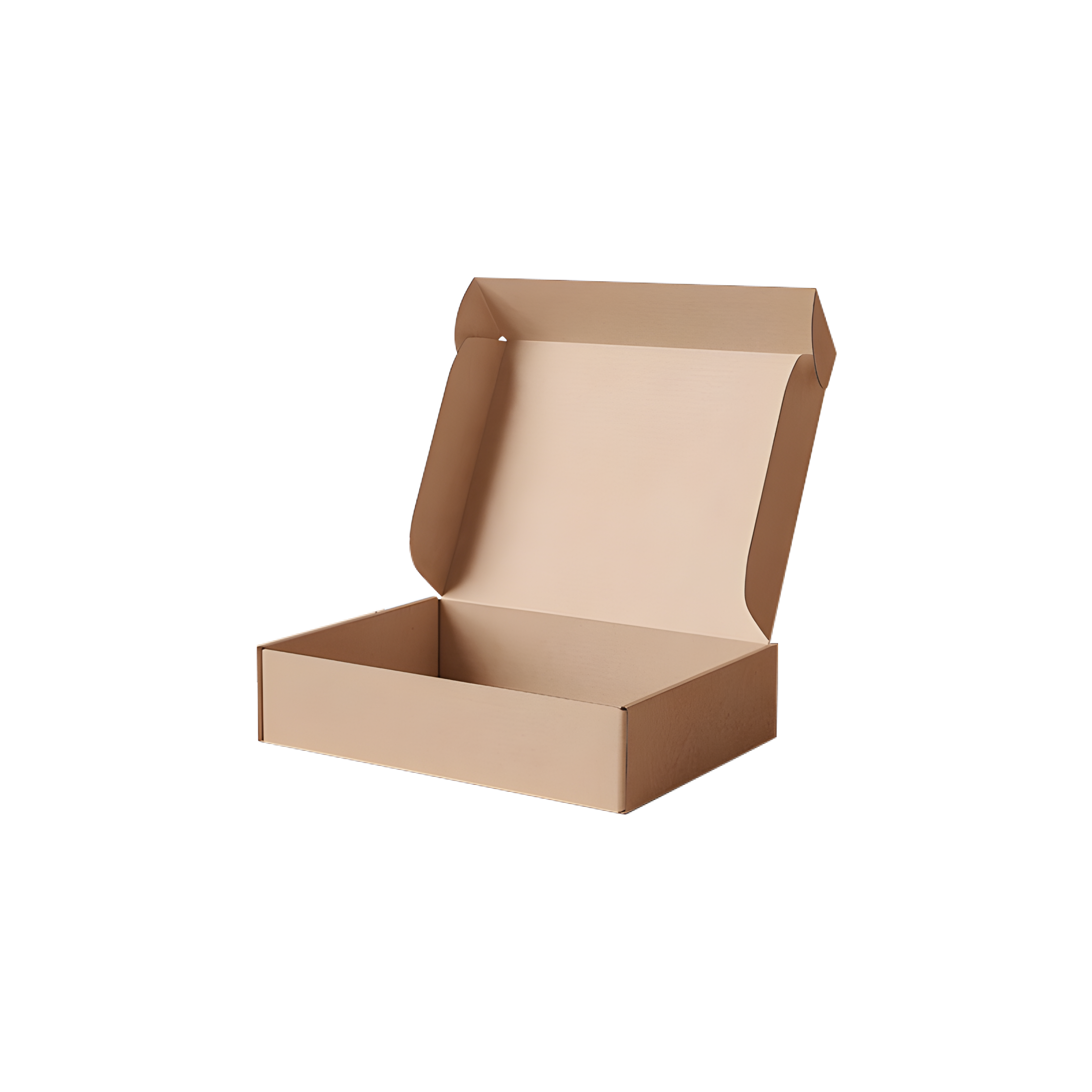

Application Scenarios
Function introduction
Basic function
◆ This machine includes box automatic adsorption feeding device, can put a stack of boxes on the box shelf, synchronous box fetching, pressing down forming, folding on both sides of the page synchronously completed; (You can also do three-sided gusset plate, the price is different), after the folding box is finished output;
◆ Can be used alone, can also be connected to the back of the box production line;
◆ Commonly used in various fruit boxes, electronic products, hardware products, toys, cosmetics, medical pharmaceutical industry and other aircraft box automatic folding box use.
Optional function
◆ Can be customized spray folding box machine.
◆ High speed folding machine can be customized.
