Mailer box folding machine(high-speed model)

Mailer box folding machine(high-speed model) Featured Image
  • Mailer box folding machine(high-speed model)

Short Description:

This machine includes box automatic adsorption feeding device, can put a stack of boxes on the box shelf, synchronous box fetching, pressing down forming, folding on both sides of the page synchronously completed; (It can also be done as a three-sided gusset plate, the price is different), and the finished product is output after the folding box is completed.


Product Detail

Product Tags

Application Scenarios

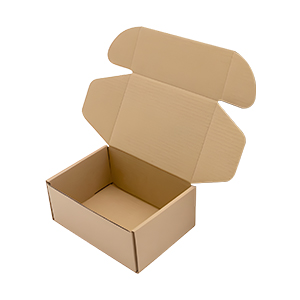

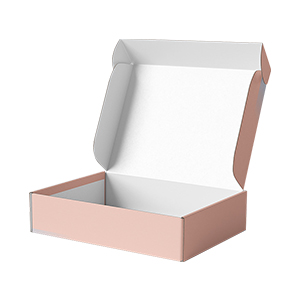

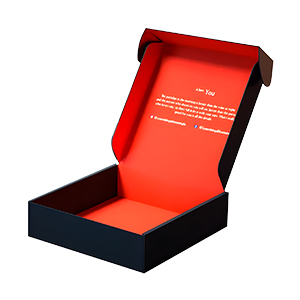

It is commonly used in various types of bathroom hardware, electronic products, hardware tools, toys, cosmetics, medical and pharmaceutical industries and other airplane shape boxes automatic folding box use.

Boxing flowchart

飞机盒

Product Paramenters

AIRPLANE SHAPE BOX FOLDING MACHINE (HIGH-SPEED MODEL)
Type HL-Z30
Machine name
 AIRPLANE SHAPE BOX FOLDING MACHINE (HIGH-SPEED MODEL)
power
220V/60Hz、2Kw
Speed 1200-2400pcs/h
Applicable product size
Sizes available to order
(Recommended for single specifications)
Air pressure
0.6-0.8mpa
machine weight
680KG
machine size
L*W*H：2930*1230*1860mm

Function introduction

Function introduction of cartoning machine:
1-This machine has an automatic box suction loading device, which can put a stack of boxes on the box rack;
2-Synchronously take out the box, press down to form, and fold and buckle the two sides at the same time , and output the finished product after folding the box;
3-It can be used alone or connected to the subsequent boxing production line.
