Rigid Box with Lid box glue spraying and folding machine

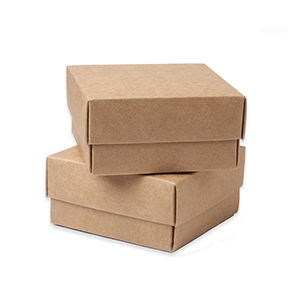

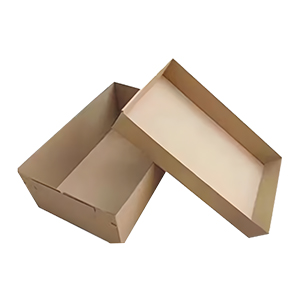

Application Scenarios

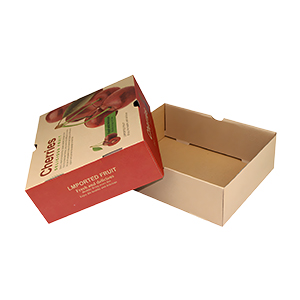

Fruit Boxes,Electronics,Hardware,Toys,Cosmetics,Pharmaceuticals.
Boxing flowchart
Product Paramenters
Lid and base box glue spraying and folding machine |
|
| Type | HL-ZP30 |
|
Machine name
|
Lid and base box glue spraying and folding machine |
|
power
|
220V/60Hz、2Kw
|
| Speed | 1800-2400pcs/h |
| Applicable product size |
Length 150-350*width:150-250*height:30-70 mm Other sizes can be tailored |
|
Air pressure
|
0.6-0.8mpa
|
|
machine weight
|
680KG
|
|
machine size
|
L*W*H：2930*1230*1860mm
|
Product introduction
Basic function
◆ This machine includes box automatic adsorption feeding device, can put a stack of boxes on the box shelf, synchronous box fetching, hot melt glue spraying, pressing molding synchronously completed; Output the finished product after folding the box;
◆ Hot melt glue folding box machine is composed of three parts, carton forming mechanism, separate feeding mechanism and hot melt glue spraying mechanism, using mechanical CAM structure, the folding box efficiency is greatly improved;
◆ Separate feeding mechanism, adding paperboard fast and convenient, no need to stop;
◆ Can be used alone, can also be connected to the back of the box production line;
◆ It is often used in all kinds of fruit boxes, electronic products, hardware products, toys, cosmetics, medical pharmaceutical industry and other world cover paper box automatic folding box.
Optional function
◆ Can specify brand hot melt glue machine.
