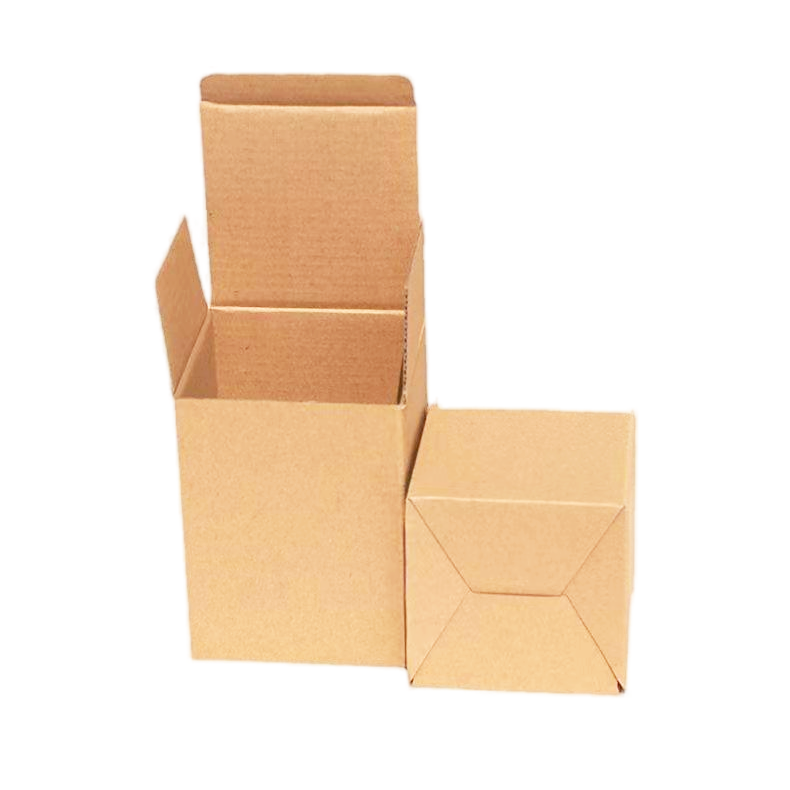

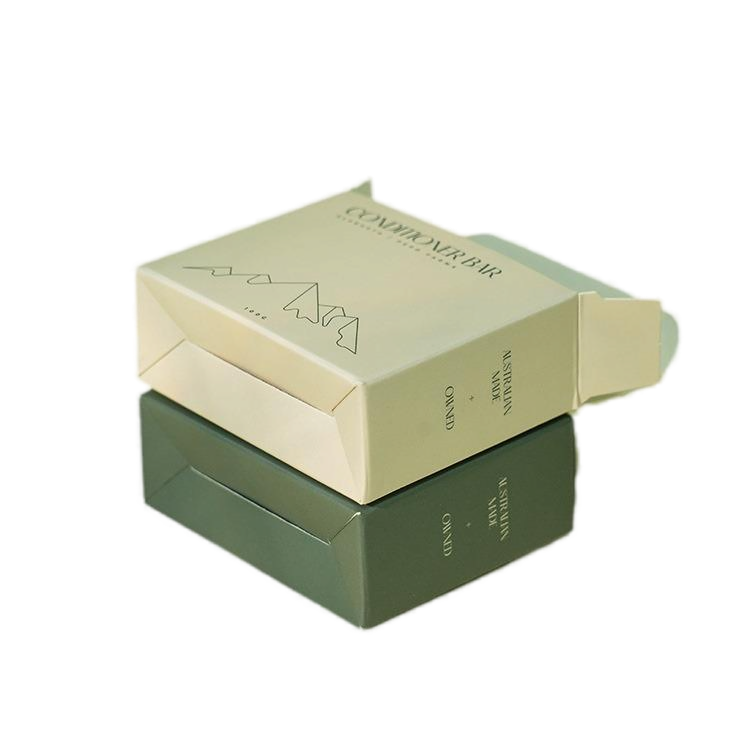

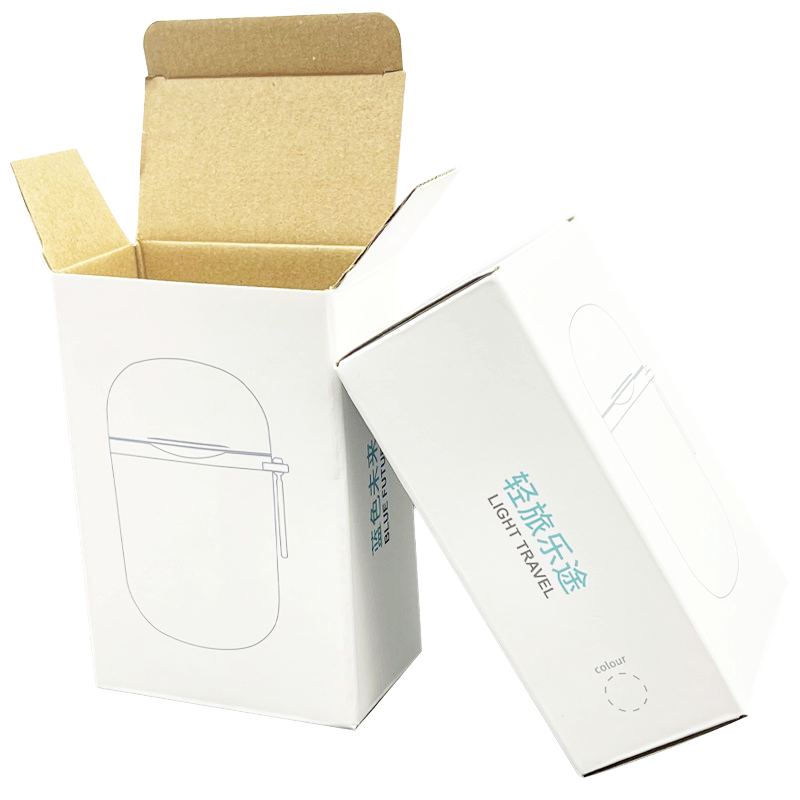

Snap lock bottom carton erecting machine
Application Scenarios
Electronic products,toys,food,e-commerce products,cosmetics,medical drugs
Boxing flowchart
Product Paramenters
|
Buckle bottom carton erecting machine |
|
| Type | HL-ZK10 |
|
Machine name
|
Buckle bottom carton erecting machine |
|
power
|
220V/50Hz、0.5Kw
|
| Speed | 720-800pcs/h |
| Applicable product size |
Length 200-400* Width 70-120* height 70-120mm
(Recommended for single specifications)
|
|
Air pressure
|
0.6-0.8mpa
|
|
machine weight
|
350KG
|
|
machine size
|
L*W*H：1620*820*1650mm
|
Function introduction
Basic function
◆ The design of the machine is simple, economic and durable, safe, low failure rate;
◆ It is suitable for packaging of the same carton size at the same time. If the carton size needs to be changed, it can be adjusted manually, which takes 10-15 minutes.
◆ This machine can be used in a single machine or with an automated packaging line.
◆ Widely used in electronic products, toys, food, e-commerce products, cosmetics, medical drugs and other industries;
◆ The design and production of the equipment meet the requirements of the production line process flow and plane layout, the appearance is beautiful and generous, and the manufacturing process is good.
◆ There is no carton alarm function.
◆ Box storage mechanism: more than 100 unformed cartons can be placed at a time (according to the thickness of the carton), and can be replenished at any time.
