UBL Glue type cartoning machine
UBL Factory Glue Type Cartoning Machine
UBL/Huanlian Group's automatic medium-sized glue spray cartoning machine integrates opening, packing, folding and sealing into one, with compact and reasonable design, simple operation and convenient maintenance. Adopt PLC programmable control system and various parameters of man-machine interface. Within the specified range of the same device, it can be quickly adjusted through the dial scale to achieve multi-specification use. The transmission and friction parts wear less later, reducing the replacement of parts. Optional hot-melt glue machine, using hot-melt glue spray glue to seal the box.
Product Paramenters
| Middle sizeglue type cartoning machine | |
| Model | HL-ZP-02 |
| Machine name | Middle size glue type cartoning machine |
| power | 220V 50Hz 4Kw |
| speed | 25-40 boxes /min |
| box size range | L:120-200*W:50-140*H:30-70mm,Other sizes can be customized |
| carton feeder height | 500-600mm |
| carton thickness | 350-400 g of white cardboard, the carton indentation is not less than 0.4mm |
| machine weight | about 1200KG |
| machine size | L*W*H：3247*1321.5*1731mm |

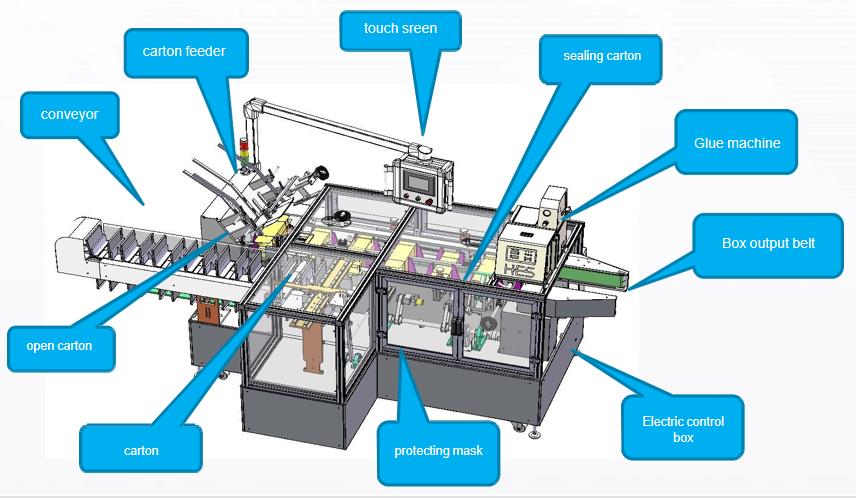

Function introduction
Boxing flowchart
