UBL nucleic acid detection box packing cartoning machine

Short Description:

UBL  nucleic acid detection box packing cartoning machine designed for nucleic acid detection boxes, which can automatically open the box, pack the box, and insert the tongue to seal. you only need to put the dropper, test kit, manual and other accessories into the Closed Material frame.


Product Detail

Product Tags

UBL Factory Automatic Cartoning Machine

https://www.ublpacking.com/ubl-nucleic-acid-detection-box-packing-machine-product/

Applied range:

1.It is mainly suitable for paper boxes made of corrugated paper, white board paper, gray cardboard and other packaging materials.
2.It is widely used in carton packaging in different industries such as digital products, cosmetics, knitwear, food, toys, fruits, daily necessities, and medicines.

Product Paramenters

UBL Test tik Cartoning machine
Type HL-Z-C120
machine name Test tik Cartoning machine
power 220V 50Hz    1.5Kw
speed 40~60  boxes /min
box size range L:80-200 XW:50-100XH:15-30 mm(it can be customized )
carton feeder height 600mm
carton   thickness 250-400 g of white cardboard, the carton indentation is not less than 0.4mm,With pre-folding effect, ear pages and short pages need to be chamfered
Air pressure ≥0.6mpa     20m3/h
machine weight 1300KG
machine size L*W*H:4000X1600X1700 mm

Function introduction

1. Function introduction of nucleic acid detection box packing machine:

This is a machine designed for nucleic acid detection boxes, which can automatically open the box, pack the box, and insert the tongue to seal. you only need to put the dropper, test kit, manual and other accessories into the Closed Material frame. On the basis of the original cartoning machine, more targeted optimizations have been made:

A-The front section of the conveying is lengthened, so that there is sufficient time for manual putting the various accessories;

B-Conveying uses a closed frame, which can avoid messy small accessories and facilitate better boxing; C-For the small box for 1 test/2 tests, a special push material and tongue insertion device are designed to make the boxing and sealing smoother; The end outlet adds a belt export device, which makes the tongue seal fit more closely, and also facilitates the connection of subsequent automated processes.

2. The working process of the nucleic acid detection box packing machine:

Manually put the accessories into the frame (the manual can choose to put it automatically) - the machine automatically opens the box, packs the box, and seals the box.

After the boxing is completed, it can be combined with the automatic weighing and testing machine, automatic sealing and labeling machine, and automatic coding to form a production line ;

——Automatic weighing and testing machine function: it can use the weighing function to use the difference in weight to identify whether there is a missing function during the conveying process of the box, and automatically reject the missing box;

——Automatic sealing and labeling machine, which can automatically label the sealing and labeling during the conveying process of the box, and can label both sides at the same time;

——Automatic inkjet printer, which can spray the date on the box during the conveying process of the box. You can choose inkjet printer and laser marking machine.

The structure of the equipment design has independent protective devices to ensure easy operation and the safety of operators. The transmission and friction parts are strictly implemented according to the standard, with less wear and tear in the later period, reducing the replacement of parts.

The equipment adopts Siemens PLC and touch screen control system (or Japan Omron/Panasonic), as well as the electrical configuration of well-known brands in the industry to ensure stable performance. The touch screen displays parameters such as the speed and quantity of cartoning, automatic alarm when there is no paper box, no product will not open the box, and the cause of the failure.

The whole machine adopts 304 stainless steel structure, which is suitable for the pharmaceutical industry;

Boxing flowchart

https://www.ublpacking.com/ubl-nucleic-acid-detection-box-packing-machine-product/
https://www.ublpacking.com/ubl-nucleic-acid-detection-box-packing-machine-product/

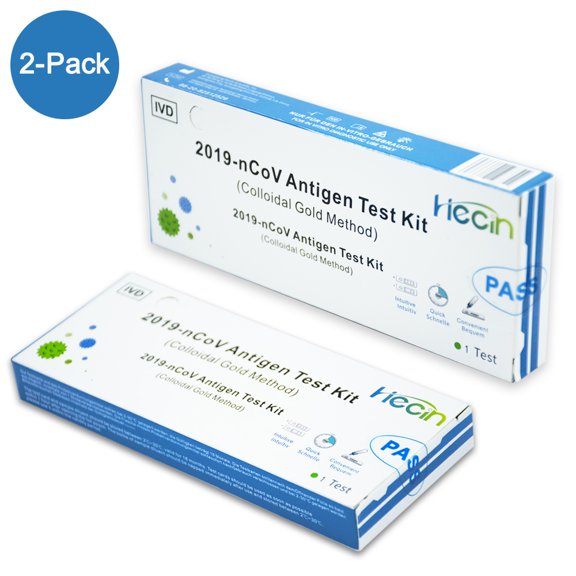

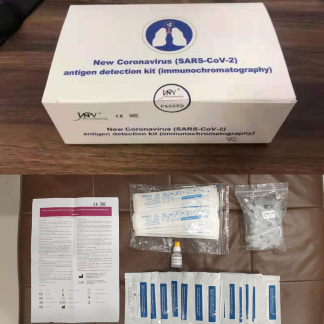

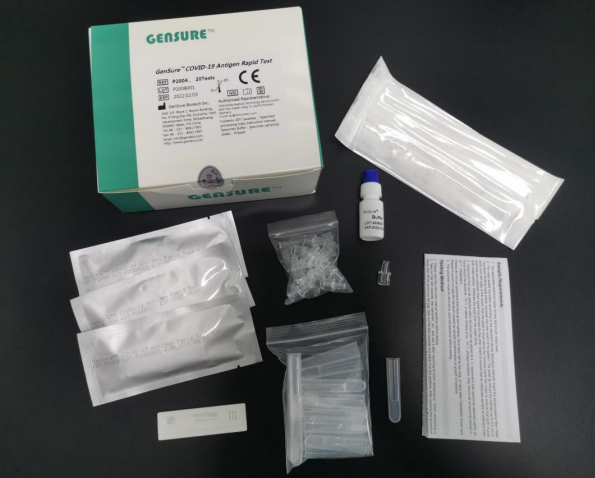

Application Scenarios
